This Tefen Quick Connect Plug features a ¼" BSPT male thread and is designed for poultry watering systems that benefit from easy, leak-free disconnection. It’s commonly used in brooders, chicken caravans, and modular hydration setups where hoses or components need to be swapped or removed quickly.
Reliable and Easy to Use
Simply push the plug into a matching Tefen socket to create a secure seal. When disconnected, the socket shuts off water flow automatically—no drips or mess.
Common Uses
- Brooder and nursery drinker lines
- Quick-disconnect hose points
- Pressure and gravity-fed poultry systems
Install Notes
Use thread tape on the BSPT thread for a watertight seal. Compatible with all standard ¼" BSPT female ports.

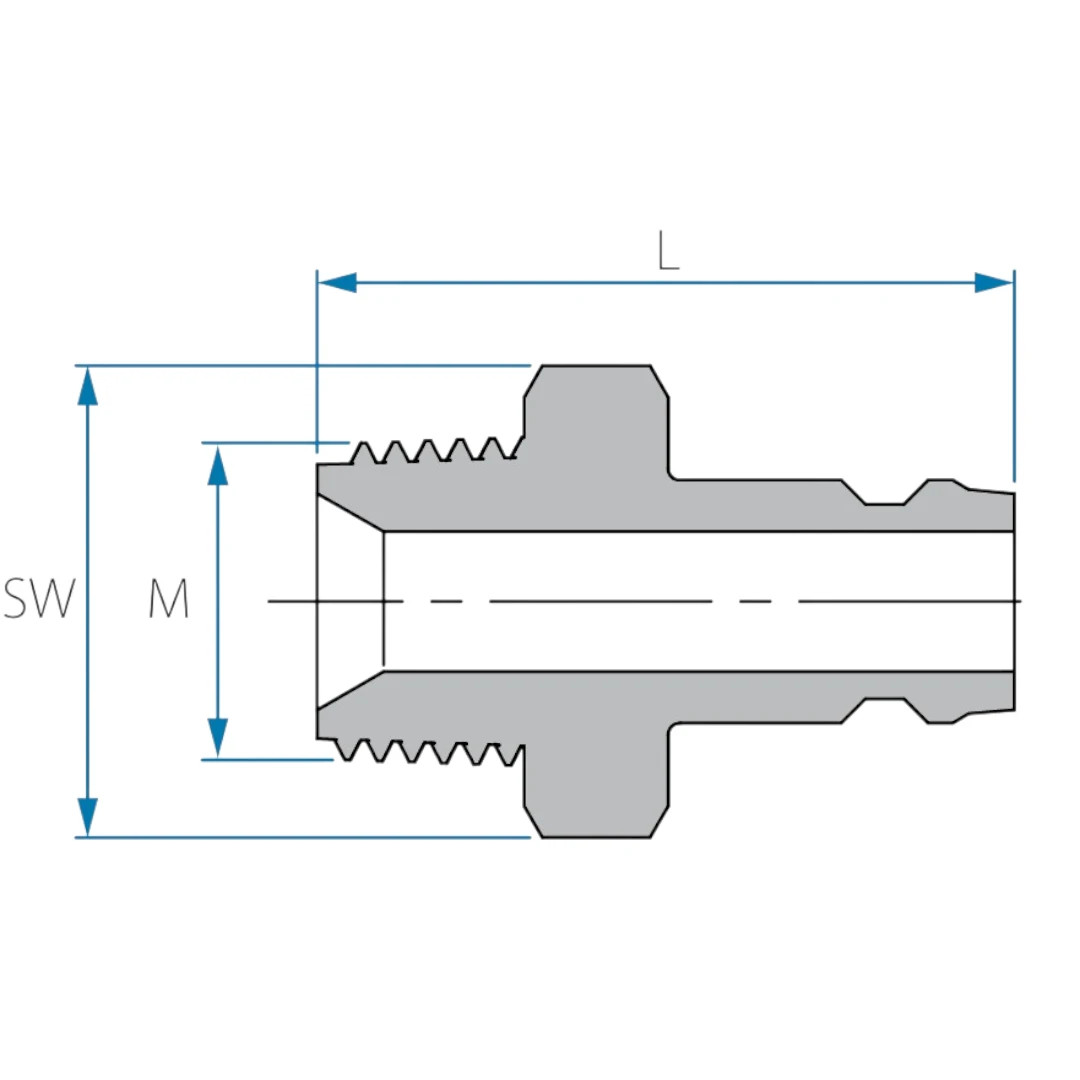

Product Specifications
- Connection Type::
- Quick Connect Plug
- Thread::
- ¼" BSPT (external)
- Length::
- 31.2 mm
- Spanner Size::
- 17 mm
- Material::
- Nylon 6-6 (Red)
- Function::
- Shut-off plug with socket pairing
- System Use::
- Gravity-fed and pressure poultry watering
Does this plug seal by itself?
No. It must be used with a matching Tefen socket that provides the shut-off valve.
What thread does it use?
¼" BSPT male thread.
Can I use it with pressure or gravity-fed setups?
Yes, it suits both system types.
