The Tefen Dual Tech Valve is a high-performance inline shut-off solution designed for poultry hydration systems. Featuring both ¼" BSPT male and female threads, it integrates seamlessly into drinker lines built with our quick connect fittings, Tefen barb connectors, and other modular system components.
Perfect for Modular and DIY Setups
This valve allows users to isolate sections of their drinker line for cleaning, repairs, or reconfiguration without shutting off the entire system. Compatible with both gravity-fed and mains pressure systems, it's suitable for use in chicken coops, brooders, and mobile chicken caravans.
Applications
- Quick disconnect inline shut-off points
- Pressure control between modular components
- Brooder and commercial poultry setups
Installation Advice
Install between two ¼" BSPT-threaded fittings such as a Quick Connect Plug (QCKPLUG1/4) and a Barb Connector. Thread tape should be applied to all male threads to ensure a leak-proof seal.

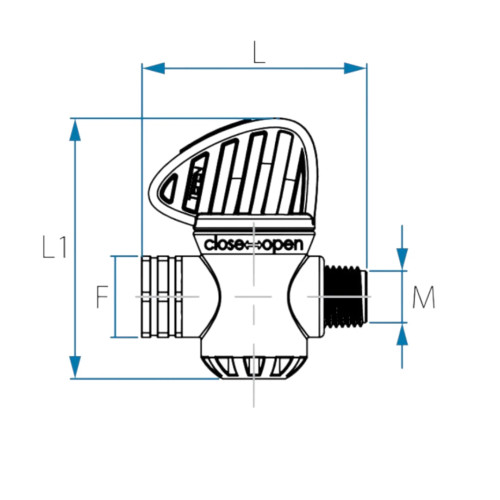

Product Specifications
- Connection Type::
- Inline Shut-Off Valve
- Thread::
- ¼" BSPT (male to female)
- Length::
- 51.2 mm
- Handle Height::
- 57.6 mm
- Spanner Size::
- 19 mm
- Material::
- Acetal body with blue grip
- Function::
- Manual shut-off for water systems
- System Use::
- Gravity-fed and pressure poultry watering
- Compatible Fittings::
- QCKPLUG1/4, QCKSOCK1/4, BSPT barb adapters
What size are the threads on this valve?
¼" BSPT male on one end and ¼" BSPT female on the other.
Can I use this with a pressure pump?
Yes, it’s compatible with both mains pressure and gravity-fed water systems.
Is it suitable for outdoor use?
Yes, it’s made from Acetal which resists UV and chemical damage.
