The Tefen Male Connector 8 mm x ¼" BSPT is designed for efficient, leak-free integration into custom poultry hydration systems. With a secure compression nut and standard BSPT threading, it forms a durable, high-performance connection between tubing and water supply sources.
Gravity and Pressure System Compatible
This fitting integrates easily with Dine-A-Chook systems, allowing seamless transitions between premium 8 mm hose and water containers such as 20L drums, Lubing header tanks, and more. Use thread tape on the BSPT thread for a watertight seal.
Fast Installation
Simply push the hose over the barb and tighten the nut. Leave at least 5x the outer diameter (OD) as a straight segment before bends to prevent strain and maintain flow performance.

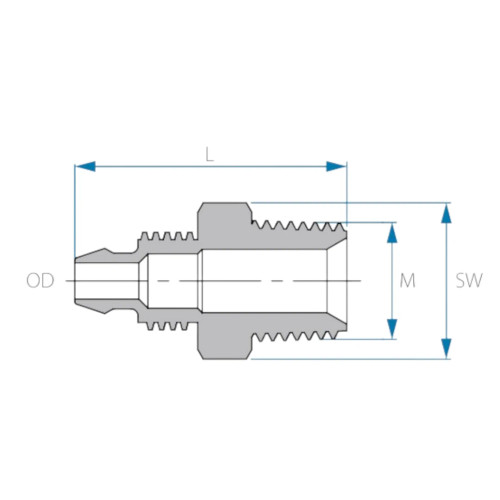

Product Specifications
- Connection Type::
- Male Barb Block Connector
- Barb Size::
- 8 mm
- Thread::
- ¼" BSPT (external)
- Length::
- 29.5 mm
- Spanner Size::
- 14 mm
- Material::
- Nylon 6-6
- Use::
- For poultry hydration, irrigation, fluid systems
What thread type is used?
¼" BSPT male thread.
Can I use this with a 20L drum or header tank?
Yes, with the appropriate reducing bush.
Is this suitable for both gravity and mains pressure?
Yes, it suits both system types.
