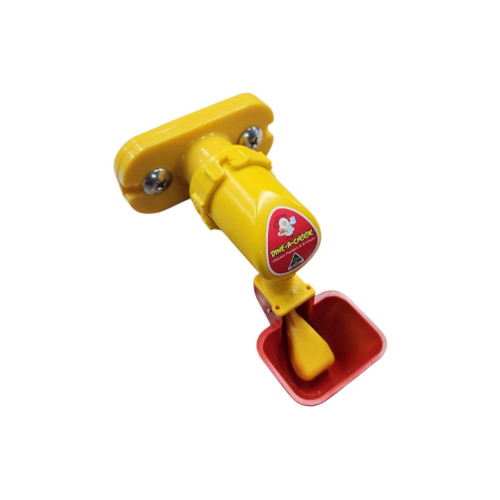

Cage Mount Lubing Cup Fitting – DIY Chicken Waterer System
Or 4 payments of
$9.99 AUD
with
Key Features
- Versatile Mounting: Attach to solid surfaces or wire mesh using the included 2-part clamp.
- Standard ¼" Thread: Easily integrates with Tefen fittings for 8 mm hose systems.
- Compact & Practical: Ideal for DIY gravity-fed poultry hydration setups.
- Australian Design: Custom-engineered for chicken keepers by Dine-A-Chook.
- Lubing Cup Ready: Pre-drilled and suited to the included upgraded red float Lubing Cup.
Need help?
Click here to text us and we’ll call or message you back as soon as possible.
Buy it with
On Sale
This Dine-A-Chook exclusive cage-mount Lubing Cup fitting is the foundation of our modular DIY poultry hydration system. Designed in-house for ultimate versatility, the component allows you to position a water outlet just about anywhere—whether on wire mesh, timber panels, or the side of a chicken tractor.
Wire Mesh or Solid Surface? No Problem.
Install using both parts of the clamp to sandwich around wire mesh. A 20 mm square or circular hole is required for the ¼" BSPT male thread (13.5 mm OD) to pass through. For timber or steel panels, simply screw the main fitting into the surface and disregard the rear clamp section. No mounting kit required.
System Layout Example
Need help planning your system? Here’s a common setup using compatible Dine-A-Chook and Tefen components:
- Start with a 20 L drum or tank
- Insert ¾" to ¼" BSPT Bush (REDBUSH3/4x1/4) into the outlet
- Add a ¼" BSPT to 8 mm Barb Connector (BSPTM1/4x8)
- Attach the 8 mm Poultry Water Hose
- Insert a TEFEN Inline Filter (FILTER8MM) to reduce sediment
- Use a ¼" BSPT Tee (TCONN8x1/4) to divert water into the cage mount
- Continue the line to additional cage mount outlets, nipples, or a vacuum release valve
All components push-fit and thread together with minimal tools, making this system perfect for DIY and small-scale commercial setups.
Shipping Policy
Dine A Chook offers a range of shipping options to suit your needs. Please review our policies below:
Shipping Rates (Australia)
- Under 500g: $13.95 flat rate.
- 500g–20kg: $15.95 flat rate.
- Over 20kg: Handled via StarTrack freight services. Shipping costs are quoted separately based on weight, size, and destination.
- Express Shipping: Calculated at checkout (from $14.95).
- Click & Collect (Garbutt): Free for eligible postcodes.
- International Orders: Calculated at checkout based on weight.
Orders Over 20kg
For orders exceeding 20kg, we use StarTrack freight services. Shipping costs vary depending on the parcel's weight, size, and destination. During checkout, the "Contact for Quote" option will display as $0.00; however, this does not mean free shipping.
Please Note:
- You will be contacted after placing your order with a custom shipping quote.
- Your order will not be processed until you confirm and pay the quoted shipping cost.
- If you have any questions about large orders or shipping costs, please contact us before placing your order.
Pickup Only Items
Certain items, such as 20kg bags of feed, are available for pickup only from our Townsville HQ at:
Dine A Chook HQ
16 Camuglia Street, Garbutt, Townsville QLD
Please select the "Click & Collect" option at checkout if purchasing pickup-only items. These items cannot be shipped under any circumstances.
How is Your Order Shipped?
All Dine A Chook orders are sent using Australia Post unless otherwise stated. Standard shipping includes tracking, and all orders require a signature upon delivery unless you provide an authority to leave. We deliver to:
- Residential and business addresses
- PO Boxes
- Parcel Lockers
Shipping Times
| State | Estimated Delivery (Business Days) |
| Queensland | 2–3 days |
| New South Wales | 3–5 days |
| Victoria | 5–7 days |
| South Australia, Tasmania & ACT | 6–8 days |
| Western Australia & Northern Territory | 8–12 days |
*With the exception of busy periods, orders received before 11am are generally shipped the same day.*
Need Assistance?
If you have any questions about our shipping policies or need assistance with an order, please don’t hesitate to contact us. We’re here to help make your shopping experience as smooth as possible!
Can this be mounted to wire mesh?
Yes. Use both clamp halves to sandwich over wire mesh. You’ll need to cut a 20 mm opening in the mesh to allow the threaded section to pass through cleanly for hose connection on the rear side.
Do I need to use the rear clamp piece?
No. For solid surfaces like wood, steel, or poly, you can mount the main part directly using screws (not included) and omit the clamp section entirely.
What fittings connect to this?
It features a standard ¼" BSPT male thread (13.5 mm OD), compatible with all Tefen ¼" female fittings. Most customers use a female connector or tee, with 8 mm hose as the supply line.
Is this suitable for mains pressure?
This fitting can be safely used in a mains pressure setup, provided it is connected via a Dine-A-Chook Header Tank or Mains Pressure Drinker System. These systems regulate and isolate the water supply, ensuring low-pressure flow into the drinker outlets. Do not connect this fitting directly to a pressurised water source.
